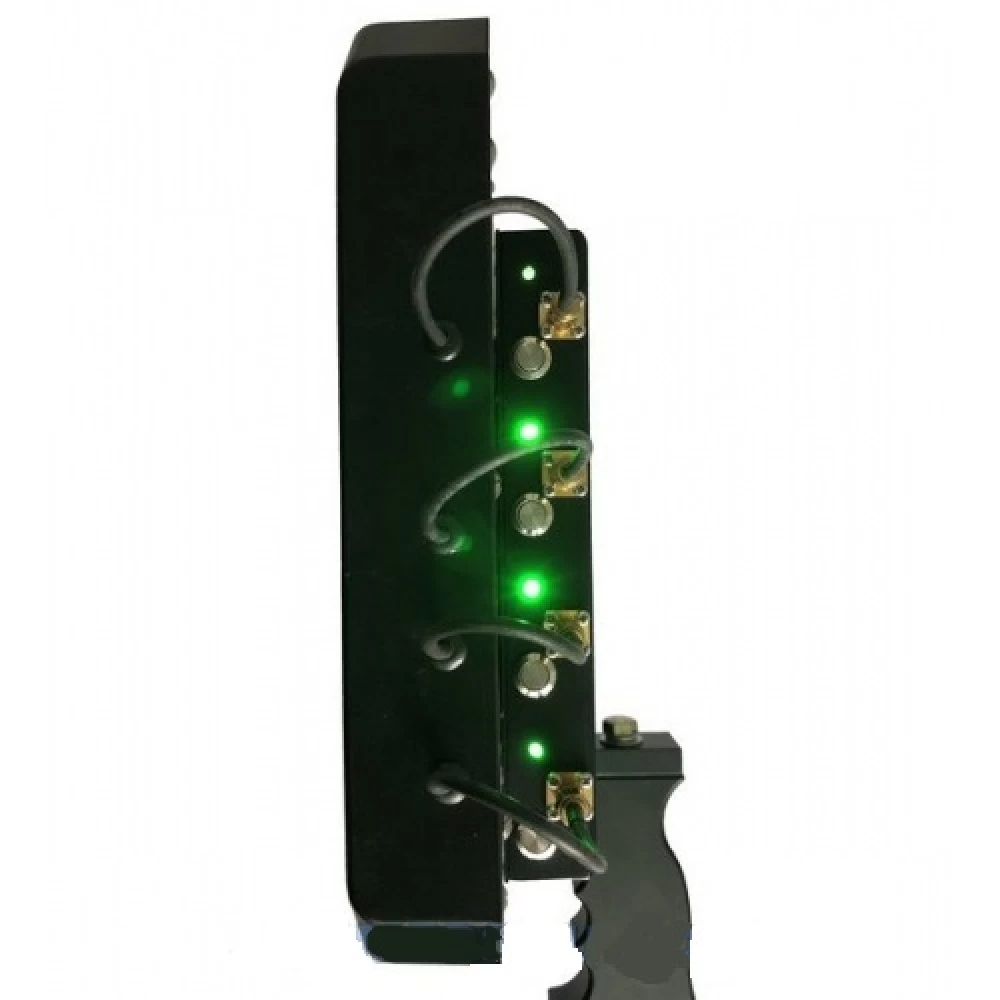

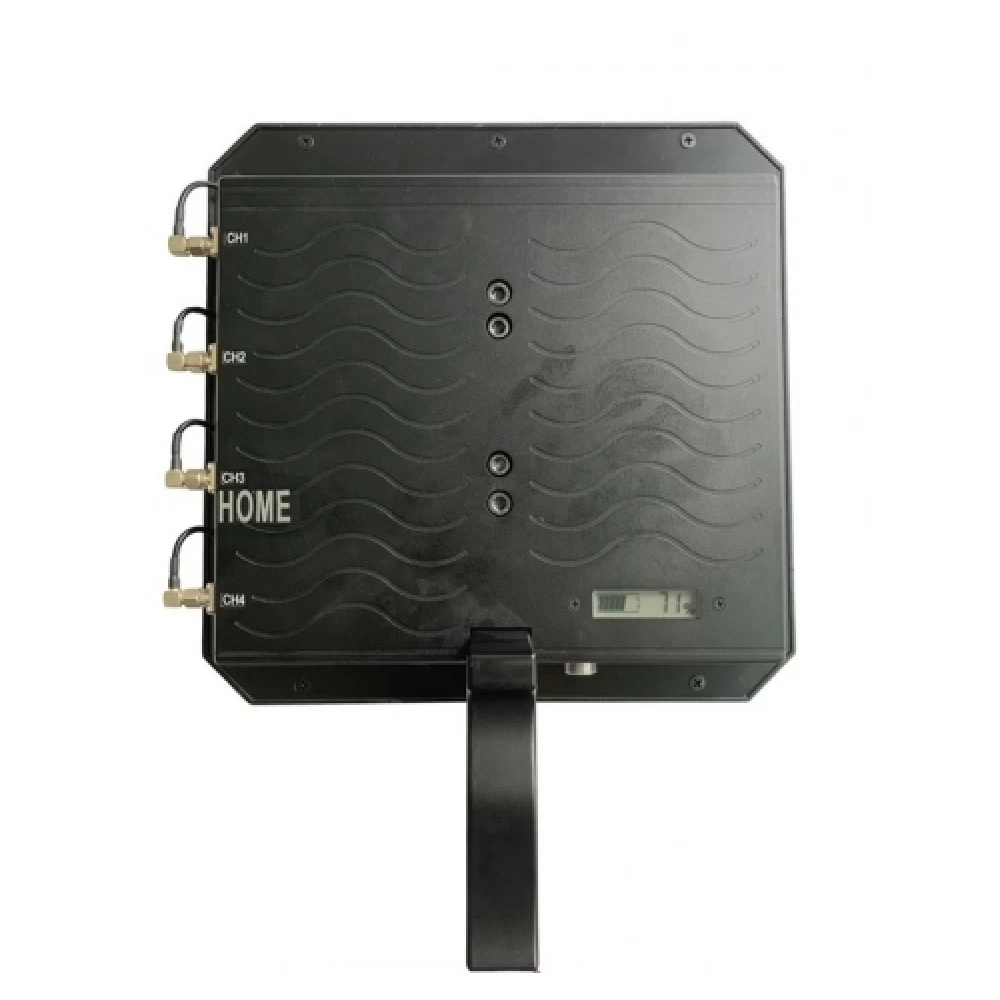

Dr-H-4 - Portable Directional WiFi GPS Remote Control drone FPV Jammer

The Dr-H-4 is a highly advanced, fully autonomous directional handheld jammer designed to counter UAV (unmanned aerial vehicle) threats. Known for its exceptional performance in extreme conditions, this jammer operates continuously for up to 80 minutes without needing a recharge. Its compact design makes it ideal for military, police, and security forces deployed in diverse and challenging environments. Featuring a built-in directional antenna and battery, it is tailored for easy portability and efficient use in the field.

This jamming device is specialized in targeting and disrupting several critical drone frequencies, including 2.4GHz, 5.8GHz, and GPS signals. The Dr-H-4 blocks the 5.7GHz-5.9GHz and 2.4GHz-2.5GHz video transmission channels, rendering drones unable to send or receive live footage. It also disrupts GPS signals, effectively preventing drone navigation by cutting off the positioning system from the maximum possible range. The jammer’s coverage extends up to 1000 meters, depending on signal strength and location, making it a reliable tool for neutralizing a wide range of UAVs.

In addition to its general jamming capabilities, the Dr-H-4 includes a unique "Home" function, designed to enhance the safety of operators and nearby personnel. When a drone is jammed, it may hover or descend slowly, potentially posing a risk if the drone carries hazardous payloads like explosives or bio-weapons. Activating the Home function commands the drone to return to its point of origin, effectively neutralizing the threat while preventing the dangerous load from landing in a vulnerable area. This feature not only protects the surrounding environment but also aids in pinpointing the drone operator’s location.

The Dr-H-4 is perfect for special operations teams or law enforcement tasked with handling dangerous drone situations. Its powerful, directional signal blocking capabilities, combined with its portable design and the added Home return feature, make it an invaluable asset for counter-UAV operations. The scrambler is engineered to provide precise control over commercial drone frequencies, ensuring operators can mitigate the risks associated with unauthorized or malicious drone activities without interfering with general communication systems like GSM cell phones.

This jammer features four frequency modules:

1.WiFi 2.4-2.5 GHz (4W - 10W) (11 g, b, Bluetooth - Vertical Polarization)
2.FPV RC 850-940 MHz 10W
3.GPS L1 + GLONASS L1 10W (1570-1620 MHz)
4.RC 5.7 GHz - 5.9 GHz 4W (Possible modification to 10W)

You can mute the following signals completely:

Drones such as the DJI Phantom 4 series, including the Professional, Advanced, and Standard models
UAVs from the DJI Inspire series
Other similar models within the DJI Phantom and Inspire range

Device Specifications:

Device Dimensions: 260 x 260 x 70 mm (H x W x D)
Weight: 2.7 kg

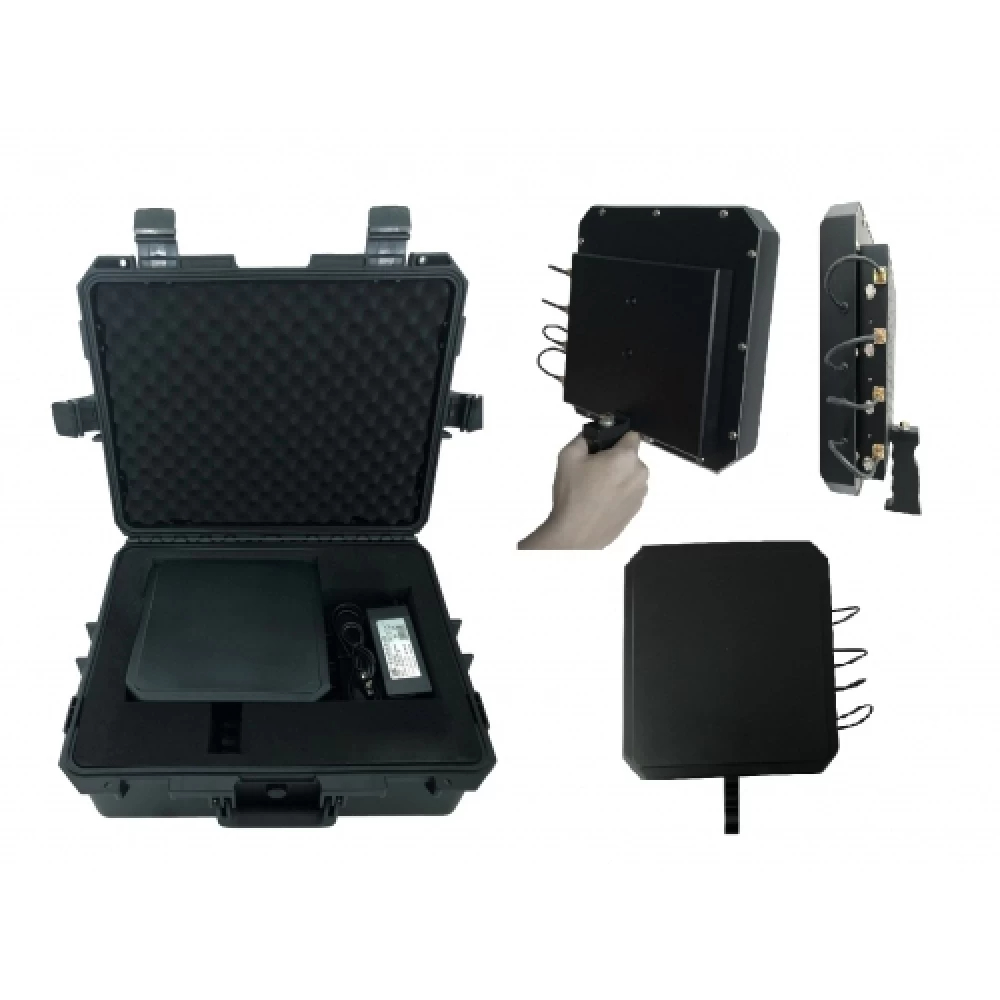

Included in the package:

1 Portable jammer for drone Dr-H-4
1 Charging device 110/220V
