JPC-9- Powerful Military Prison Cell Phone Communication Jammer device

The "JPC-9" cell communications jammer comes with an integrated router for remote control, allowing you to monitor and manage all jammer functions via specialized software on a computer. Known as one of the 400W most powerful Military mobile jammer equipment globally, it offers extended coverage through external omnidirectional antennas. In addition to blocking standard communication types, it also disrupts high-speed 4G signals, WiFi networks, and GPS/GLONASS devices. It features the option to selectively disable certain communication standards, enabling customized control over mobile device functions. This device is designed for large-scale restricted areas, ensuring reliable operation across a wide temperature range thanks to its thermal cabinet housing.

Do you need to secure a large area from Cellular communications? A high-powered communication jammer is the solution. While portable jammers are effective for small spaces, they may not cover larger territories. For expansive areas, it is far more efficient to use a single, powerful device rather than multiple low-powered ones.

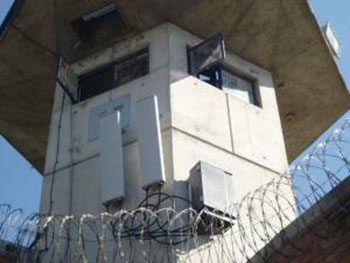

"The "JPC-9" mobile phone communications jammer is designed for installation on the observation tower of a secured area."

Recommended Applications for the "JPC-9" GSM, 3G, 4G, WiFi, GPS, and GLONASS Jammer

• Confidential Meetings and Negotiations: The disruptor is ideal for ensuring privacy during critical discussions at large venues, where confidentiality is a priority.
• Restricted Facilities: Perfect for use in high-security areas such as prisons, pre-trial detention centers, research institutions, and defense industry facilities, where mobile communication is prohibited.
• Cultural Institutions: In places like libraries, cinemas, and theaters, the jammer helps maintain silence by preventing disruptions from unexpected phone calls.
• Healthcare Settings: It’s useful in medical institutions to protect sensitive medical equipment from interference caused by mobile devices.
• Educational Institutions: Ideal for classrooms and exam halls, where mobile phones can be a distraction or used for cheating, ensuring a focused learning environment.

Advantages of the "JPC-9" prison Mobile cell Jammer

• The integrated router enables remote operation, allowing you to control the jammer through a computer with specialized software installed, acting as a wireless control panel.
• With the ability to block 4G communications, the scrambler can completely disrupt the operation of even the latest mobile devices that rely on high-speed networks.
• Blocking GPS and GLONASS signals prevents the use of tracking systems that could be employed for monitoring the movement of individuals and vehicles.
• By blocking WiFi, the device prevents data transmission over wireless local networks, while also neutralizing the use of wireless microphones, cameras, keyloggers, and other devices operating within these standards.
• External omnidirectional antennas are connected via cables and positioned outside the building, ensuring that the signal-blocking effect is not weakened by structural barriers, thus expanding the jammer's range. Directional antennas can be added upon request for enhanced precision.
• The jammer is equipped with six detachable antennas, each targeting different frequency ranges. This feature allows for selective blocking, enabling you to turn off specific antennas to disable particular communication standards.
• An internal fan system cools the device's components, enabling it to maintain continuous operation without overheating, even during extended periods of use.
• The thermal cabinet-style housing allows the jammer to function in virtually any environment, ensuring stable communication disruption in both hot and cold conditions.

How does a phone jammer work?

The jammer features 6 built-in generators paired with 6 antennas, which work together to create interference over a radius of 100 to 500 meters. This interference completely disrupts mobile phone signals and other similar devices that operate on common communication standards. In essence, mobile phones within the jammer's range behave as though they are outside network coverage: they can’t make or receive calls, send messages, access the internet, or connect to WiFi networks.

The interference generated by the Silencer spreads in all directions, so it not only affects devices on the same floor but also those on upper and lower floors. The exact range of the blocking depends on factors like signal quality at the jammer's installation site, physical obstructions, and surrounding conditions. Thanks to this wide coverage, simply activating the jammer ensures protection from mobile device surveillance, allowing you to work without worrying about unwanted calls or messages interfering with your tasks.

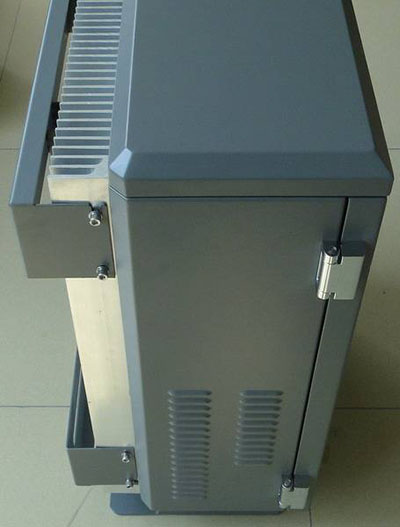

"The metal casing of the "JPC-9" prison cell jammer ensures robust protection, safeguarding it not only from environmental factors but also from physical damage such as impacts."

Customizable Frequency Blocking for Selective Protection

This jammer allows you to block specific devices while leaving others unaffected by selectively choosing which frequency ranges to suppress. While it can simultaneously block most types of mobile communication for comprehensive security, there may be situations where you don’t want to interfere with certain devices. For example, you can block phone calls within the GSM range while still allowing 3G mobile internet devices to operate normally. To achieve this, simply disconnect the relevant antennas from the jammer, effectively excluding specific frequencies from the blockage. This feature provides tailored protection, ensuring that only the intended signals are disrupted.

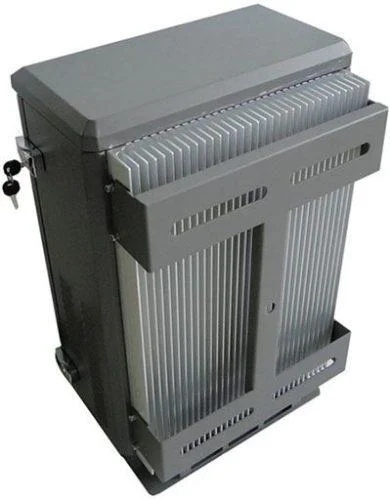

"The "JPC-9" high power cellular frequency jammer features a mounting bracket on the back for easy wall installation, as well as a heat dissipation radiator to prevent overheating during operation."

Remote Control and Easy Management via Built-In Router

The "JPC-9" mobile communications jammer is designed for versatile use in locations where direct access to the device for testing and control is not always possible. To address this, it includes a built-in router, enabling wireless communication between the jammer and a remote computer. With the help of proprietary software installed on the computer, you can easily monitor the status of the jammer’s antennas and other components from a distance, as well as manage its functions. Additionally, the jammer is equipped with an email alert system, notifying you of any attempted unauthorized access, ensuring secure operation.

User-Friendly and Simple Setup

No specialized skills are required to operate the "JPC-9" cell phone communications jammer. During testing, we observed that anyone can quickly set up and configure the device. Simply connect the antennas, plug the device into a 220V power source, and turn it on. Within seconds, the jammer will block mobile communication devices within its range, preventing them from functioning properly.

Blocking equipment Specifications:

Signal blocking range: from 100 to 500 meters

Blocked frequency bands:

📡 460-470 MHz: CDMA450/UHF
📶 850-895 MHz: CDMA 850
🛰️ 1570-1620 MHz: GPS L1 + Glonass L1
📱 1800-2000 MHz: DCS, PCS
📡 2110-2170 MHz: 3G, UMTS
📶 1700-1800 MHz: 4G 1700
📱 700-800 MHz: 4G LTE USA (AT&T & Verizon)
📡 2300-2500 MHz: 4G LTE + WiFi 11.b & g
📶 2500-2700 MHz: 4G WiMAX Sprint

Device specifications:

Total output power: 400W
Individual antenna power: 25-100W
Built-in router: Yes
Power supply: AC 220V
Power consumption: 2250 W
Continuous operation time: Unlimited
Antenna dimensions (without antennas): 72x45x32 cm
Weight: 79 kg
Protection rating: IP55
Operating temperature: -40°C to +65°C
Humidity tolerance: 5% to 80%

Included in the package:

Signal jamming device
Six antennas
Antenna cables
Power cables for 220V supply
Installation instructions
