CM10 - Wood Grain 5G Cell Phone handheld Signal Jammer

The CM10 is a high-performance portable mobile phone blocker engineered for professionals who require reliable and discreet signal blocking in sensitive environments. Housed in a sleek, speaker-like body with a distinctive wood grain finish, it blends naturally into any office or home setting, offering both functional efficiency and a refined aesthetic.

The CM10 is capable of disrupting a wide range of communication signals, including GSM, 3G (UMTS), 4G LTE, and the latest 5G bands used by major U.S. carriers such as Verizon, AT&T, and T-Mobile. It also effectively blocks WiFi (2.4GHz and 5GHz) and GPS signals, making it ideal for protecting privacy, securing confidential meetings, and preventing unauthorized tracking.

Technical Specifications and Features:

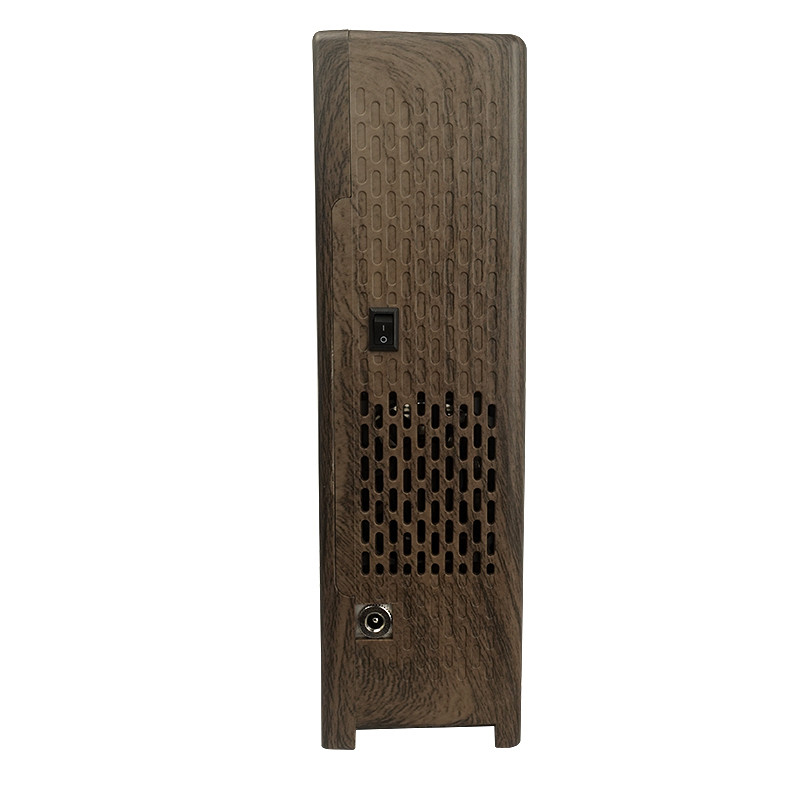

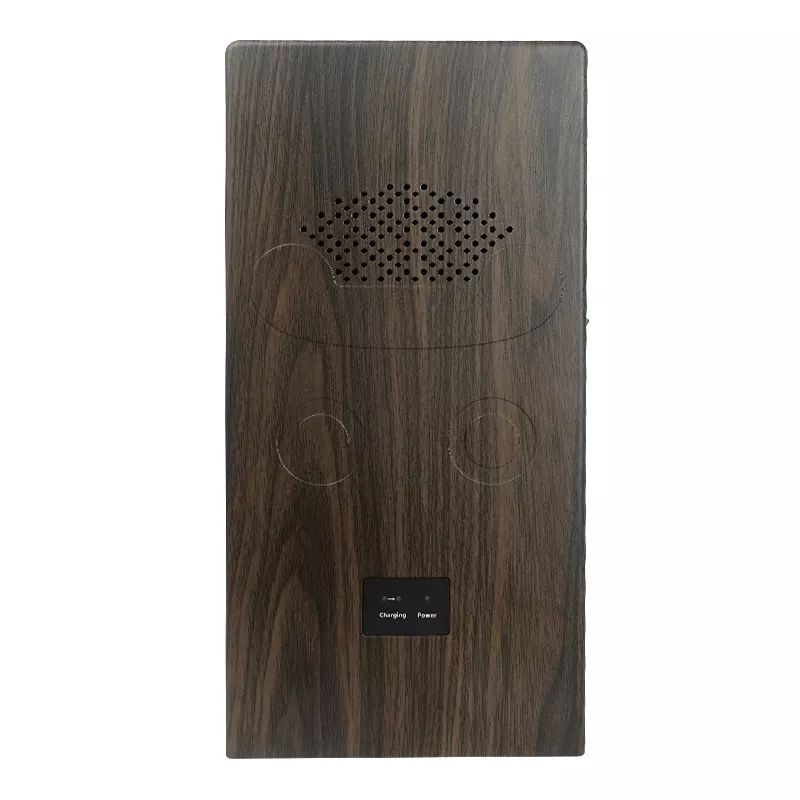

• Unique design with wood grain pattern for low-profile appearance
• Compact and portable: Measures 255 x 127 x 74 mm and weighs only 1.2 kg
• High output power: 2–3 watts per channel for enhanced jamming performance
• Effective interference range: Up to 30 meters (98 feet), depending on environment

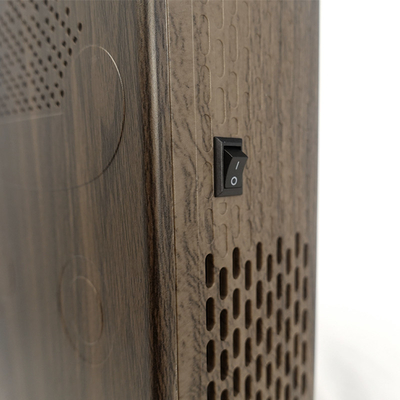

• Plug-and-play operation: No setup required, one-button start
• Integrated cooling system: Built-in fan and ventilation channels prevent overheating and ensure consistent operation
• Rechargeable lithium battery: Delivers up to 60 minutes of continuous use on a full charge

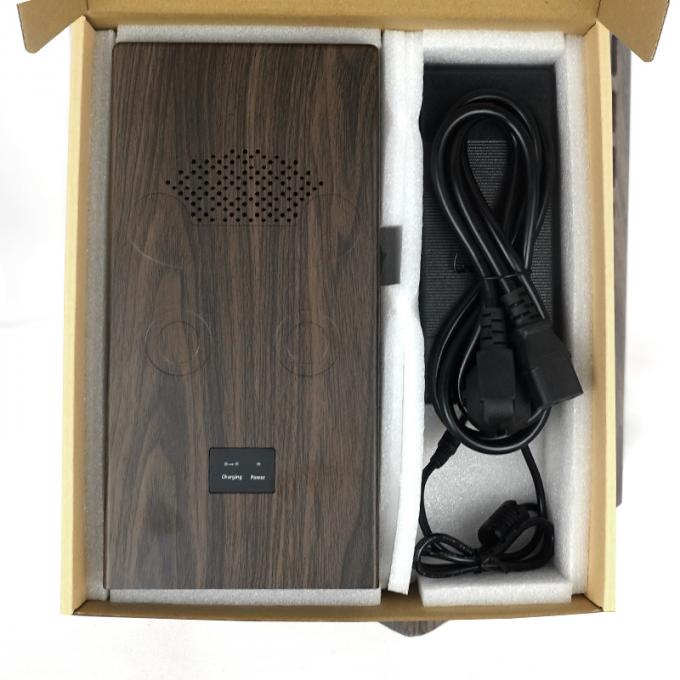

• 12V car charger included: Supports charging through a vehicle power outlet

Durability and Internal Components

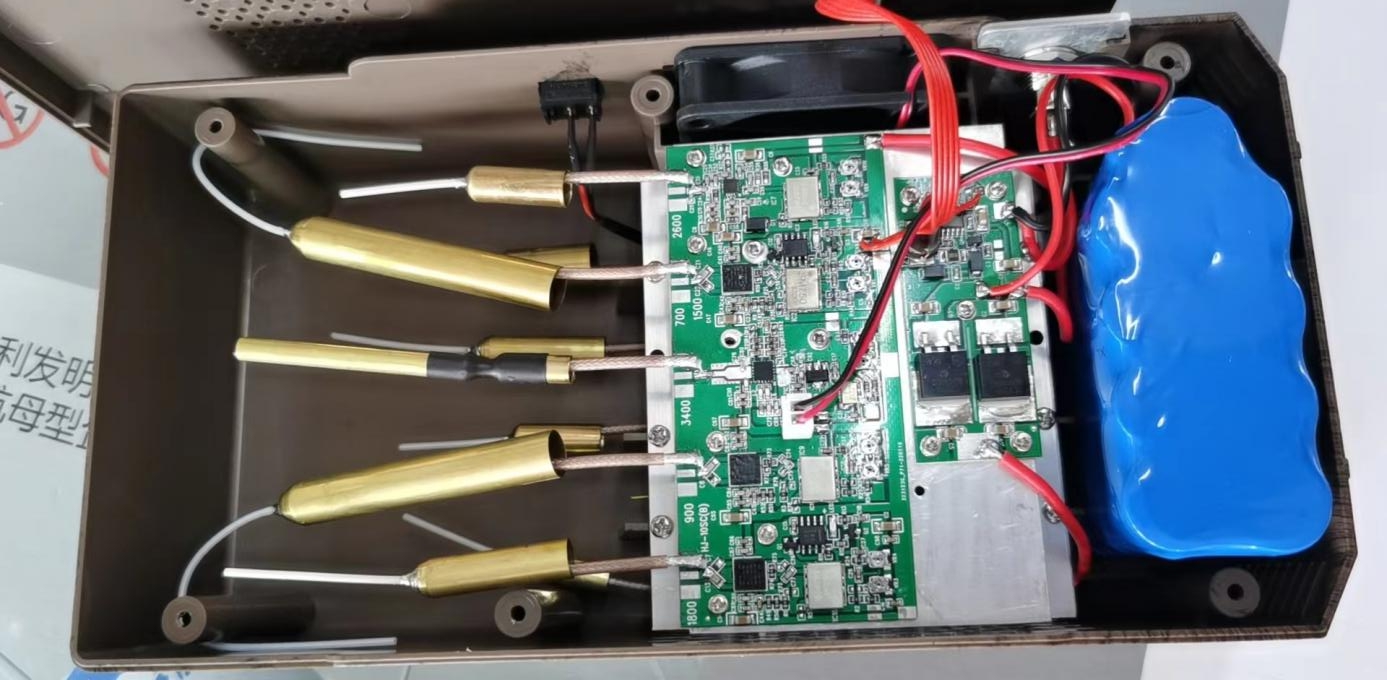

The CM10 is housed in a shock-resistant, dustproof casing designed to endure industrial-grade conditions. Inside, high-quality printed circuit boards (PCBs) and precision electronic components are used to ensure long-term reliability and optimal performance.

Its 10 omnidirectional internal antennas provide 360-degree signal suppression without blind spots. The antennas are securely enclosed within the unit to prevent physical damage and eliminate the need for external setup or adjustment.

Supported Frequency Bands and Output Power (per channel):

📞 CDMA 850 (850–894 MHz) – 37 dBm (approx. 2 watts)
📞 GSM 900 (925–960 MHz) – 37 dBm (approx. 3 watts)
📞 DCS / PCS (1800-2000 MHz) – 37 dBm (approx. 3 watts)
🌐 3G UMTS (2110–2170 MHz) – 37 dBm (approx. 2 watts)
📱 4G LTE + WiFi 11.b & g (2300-2500 MHz) – 37 dBm (approx. 2 watts)
📱 4G WiMAX Sprint (2500–2700 MHz) – 37 dBm (approx. 2 watts)
📡 Wi-Fi 5.2 GHz (5125-5350 MHz) – 37 dBm (approx. 2 watts)
📡 Wi-Fi 5.8G GHz (5725–5850 MHz) – 35 dBm (approx. 2 watts)
📶 5G (617-652 MHz) – 35 dBm (approx. 2 watts)
📶 5G NR Band n77 (3400–3800 MHz) – 35 dBm (approx. 2 watts)
🛰️ GPS L1 Band (1570–1620 MHz) – 37 dBm (approx. 2 watts)

⚠️ Note: Actual blocking distance and effectiveness may vary depending on environment and signal strength in the area.
